SharePoint|BPM

Introduction

Requirement: Create a user-defined InfoPath section that can be displayed or hidden based upon the user's need.

Table of Contents

• • • Introduction
    • Creating Control List Fields
    • Customizing the InfoPath Form
    • Picture button rules
    • Help Section Rules


  Create Control List Fields

  In order to create 'Help' buttons for your form user's, first create control fields in your custom list for each of your Help sections.
  • • 1. Create a new column:
         1. Column name:  ShowHideBGDesc, ShowHideSTGYDesc, ShowHideBusTypeDesc, etc.
         2. Type: single line of text
         3. Required: No
         4. Accept defaults for everything else
  Add 'ShowHidexxxx' columns for every needed InfoPath help section you will create in the next section.

  Customizing the InfoPath form

  If you don't already have a list form that you need to customize, create one now. It can be based on a Custom list template, or any other list template that you need, such as Tasks.

  Add Picture button that user will Click to show/hide the Help text section Add Help Text section	Help Text InfoPath form section and Picture button
  	Picture button rules Click on Picture button Click on Manage Rules from Home tab of InfoPath form Create a new Action Rule Set Condition to: In first dropdown field, choose Select a field or group... Select appropriate field, ShowHideSTGYDesc In middle dropdown field, Select is blank In And field dropdown field, Select or In second line first dropdown field box, choose Select a field or group... Select same field as previous, ShowHideSTGYDesc In middle dropdown field box, Choose is equal to In third dropdown field box, Choose Type a number... Type '3' (without quotes) Click OK
  5.  Add an Action by Clicking Add 6.  Select Set a field's value 7.  In Field box, Click field selection box and Choose same field as previous, ShowHideSTGYDesc 8.  In Value field, Type '2' (without quotes) 9.  Click OK 10.  Ensure that Don't run remaining rules if the condition of this rule is met
  	11.  Create another Action Rule on picture button 12.  Set Condition to: In the first dropdown field, choose Select a field or group... Select same field as previous, ShowHideSTGYDesc In the middle dropdown field box, choose is equal to In the third dropdown field box, Choose Type a number... Type '2' (without quote) Click OK
  	13.  Add an Action by Clicking Add 14.  Select Set a field's value 15.  In Field box, Click field selection box and Choose same field as previous, ShowHideSTGYDesc 16.  In Value field, Type '3' (without quotes) 17.  Click OK
  Help Section Rules  Select appropriate InfoPath section that will be tied to the previously set up Picture button Click on Manage Rules from Home tab of InfoPath form Create a new Formating Rule Set Condition to: In the first dropdown field, Choose previously set up field, ShowHideSTGYDesc In middle dropdown field, Choose is not equal to In third dropdown field box, Choose Type a number... Type '2' (without quotes) Click OK 5.  Under Formatting, Place a check in Hide this control field

Introduction

During a recent client build (JPMC), I had a custom SharePoint list InfoPath requirement where I had to restrict a section of the InfoPath form view (I created 4 in total...see more here) to a specific group of users ('Management Use' only).  Instead of simply marking the section/fields with a heading such as 'Management Use only', I can show or hide this section based on the logged in user and separate custom permissions list where we can maintain the specific management group.  This ariticle describes how to achieve that in InfoPath.

---

Table of Contents

• • Introduction
  • Creating the 'Management' List
    • Manage the Data Connections
    • Add linkage fields
    • Customizing the InfoPath List Form
    • Create the Rules
  • Manage Restricted Section



---

Creating the 'Management' List

In order to restrict sections in the form, create a custom list that contains the users who will have access to the section.  We will reference this list in a data connection in InfoPath.

1. Create a custom list and name it: ElevatePermissionsUsers
2. Create a new column:
   1. Column name: Admin/User
   2. Type: Person or Group
   3. Required: Yes
   4. Allow selection of: People Only
   5. Accept the defaults for everything else
3. In Advanced Settings, Allow management of content types
4. Change the Item content type and hide the Title field
5. Change the default All Items view:
   1. Remove the Title field
   2. Add Edit (link to edit item) and move it to the first column

Now your list is ready, Add a couple of site users to the list.

---

Customizing the InfoPath List Form

If you don't already have a list form that you need to customize, create one now. It can be based on a Custom list template, or any other list template that you need, such as Tasks.

Add linkage fields

For this customer, I created a custom list and named it IOLRequest.  By adding two additional fields, IsAdmin (number, hide in all views) and CurrentUser (single line of text, hide in all views) to IOLRequest, I created a relational interchange between IOLRequest and the previously created ElevatePermissionsUsers. Now let's return to the InfoPath List Form by clicking the Customize in InfoPath button from any IOLRequest list view.  Click on the DATA tab on the InfoPath Ribbon, then go to Manage Data Connections.

Manage Data Connections

Add a New connection to ElevatePermissionsUsers list and name it GET-ElevatePermissionsUsers. Select the following fields:   AdminUser ID Accept the defaults and complete the wizard steps

Create the Rules

1. Select the DATA tab in the ribbon
2. In the Rules section, click on the Form Load button
3. Create a new Action rule and name it Assign Admin Users
4. Accept the default Condition - None - Rule runs when form is opened

	6.Create a new Set a field's value action: Field: IsAdmin For Value, click on the fx button Click Insert a Field or Group Click on Show advanced view Change the data source to GET-ElevatedPermissionsUsers Under dataFields, drill down and select ID

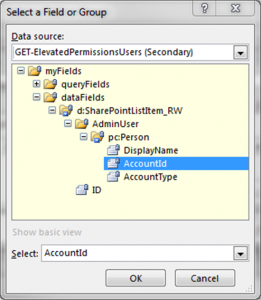

7. Click Filter Data 8. Click Add 9. In the first drop-down box change ID and click Select a field or group... 10. On the Data source dialog, under dataFields, drill down and select AdminUser AccountID

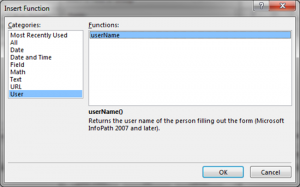

	11. Click OK 12. Accept the default in the second drop-down: is equal to 13. From the third drop-down, select Use a formula... 14. On the Insert Formula dialog, click the middle button Insert Function... 15. Select the userName function and click OK

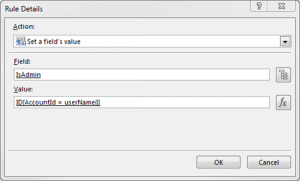

16. Click OK several times to close all dialog boxes The final Rule Details dialog should look similar to the image at right:

Manage Restricted Section

1. Click on the section tab that contains your restricted content 2. Create a new formatting rule and name it Hide From Non-Admin Users 3. Set the condition to IsAdmin = Is blank 4. Select the Hide this control check-box 5. Right-click on the CurrentUser field in the fields section and select Field Properties... 6. Change the Default Value by clicking the fx button next to the Value text box 7. Insert the userName function

Publish the form

Test the form by signing in to the site with a user who is in the ElevatedPermissionsUsers list, then with one who's not in this list.
